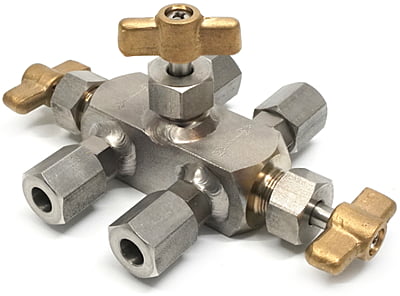

Cryogenic Manifold
Compact size, for tank tool block and other differential pressure measurement applications:
- For 3 and 4 valve stations
- Option of a 40mm dia. flange to connect to the control pressure gauge
- Line or square couplings
- Centre to centre distance 35 mm (3, 4 valves) or 35 mm (inlet), 54 mm (outlet) for 4 valve stations
- Conical needle shutter free to rotate with respect to the stem for greater resistance to wear due to rubbing during closing
