Cryogenic Solenoid Valves

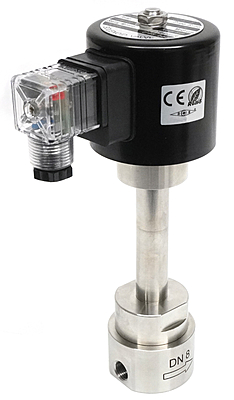

The L88 series two way normally closed solenoid valves manufactured by Nadi Srl in Italy offer reliable operation for cryogenic media to -196 degrees C.

• Pressure range up to 20bar (2.0mm internal orifice)

• Brass or 316 stainless steel bodies

• Degreased for oxygen service

• Coils to suit all common voltages: 12, 24, 48, 110, 230VAC or DC

• PTFE elastomers

• IP65, IP67, Exd

• Special model with 7.0mm internal orifice (0-2.5bar) *ask for further information*

Model: L88T20C3P/24VDC (1/4"BSP, 2/2 Normally Closed. Brass. 24VDC)

Model: L88I20C3P/12VDC (1/4"BSP, 2/2 Normally Closed. 316SS. 12VDC)

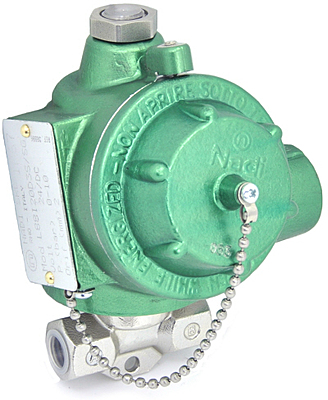

Model: L88I20C3S/24VDC/M20 (1/4"NPT, Normally Closed, Stainless Steel, Degreased, Waterproof Housing)

Model: L88I20C3S/24VDC/M20 (1/4"BSP, Normally Closed, Stainless Steel, Degreased, Waterproof Housing)

Model: RX42. High Flow.  1/4"BSP, Normally Closed, Stainless Steel, 220VAC
