High Precision Pressure Regulators, manufactured to PED standards with certification for ATEX or EAC-EX CU TR
Model 522 Aluminium Regulators
The model 522 range of aluminium pressure regulators from ID Insert Deal Srl are suitable for use on air or gas for pressures up to 30bar. The regulator has a balanced main valve and uses a diaphragm for outlet pressures up to 15bar. Adjustment options are a handwheel or pilot operation. This compact regulator is available in 3 sizes: R114 - 1/4", R138 - 3/8" and R112 - 1/2", all with 1/4" gauge ports. This regulator complies with PED

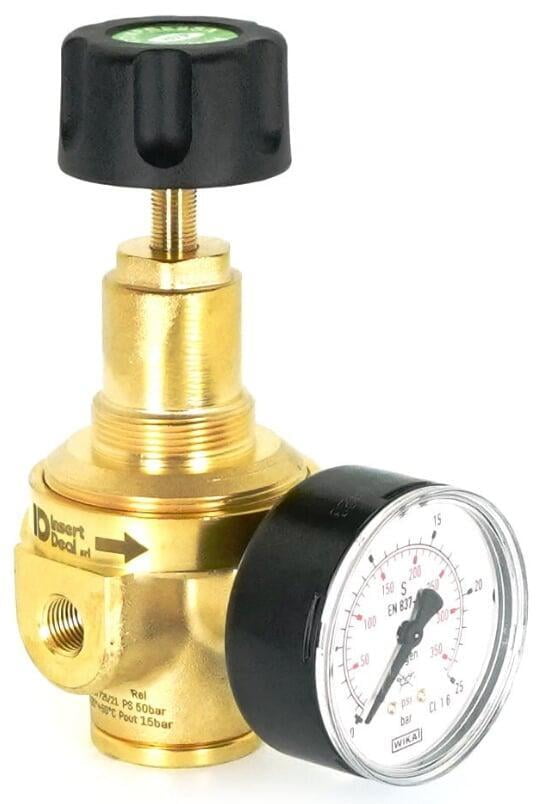

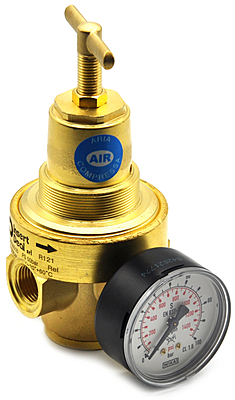

Model R114 Regulators
The model 521 range of brass pressure regulators from ID Insert Deal Srl are suitable for use on air, gas or liquids for pressures up to 50bar. The regulator uses a diaphragm for outlet pressures up to 15bar or a piston for up to 50bar with a handwheel or pilot operation. This compact regulator is available in 3 sizes: R114 - 1/4", R138 - 3/8" and R112 - 1/2", all with 1/4" gauge ports. This regulator complies with PED and can be supplied with ATEX or EAC-Ex certification for hazardous area duty.

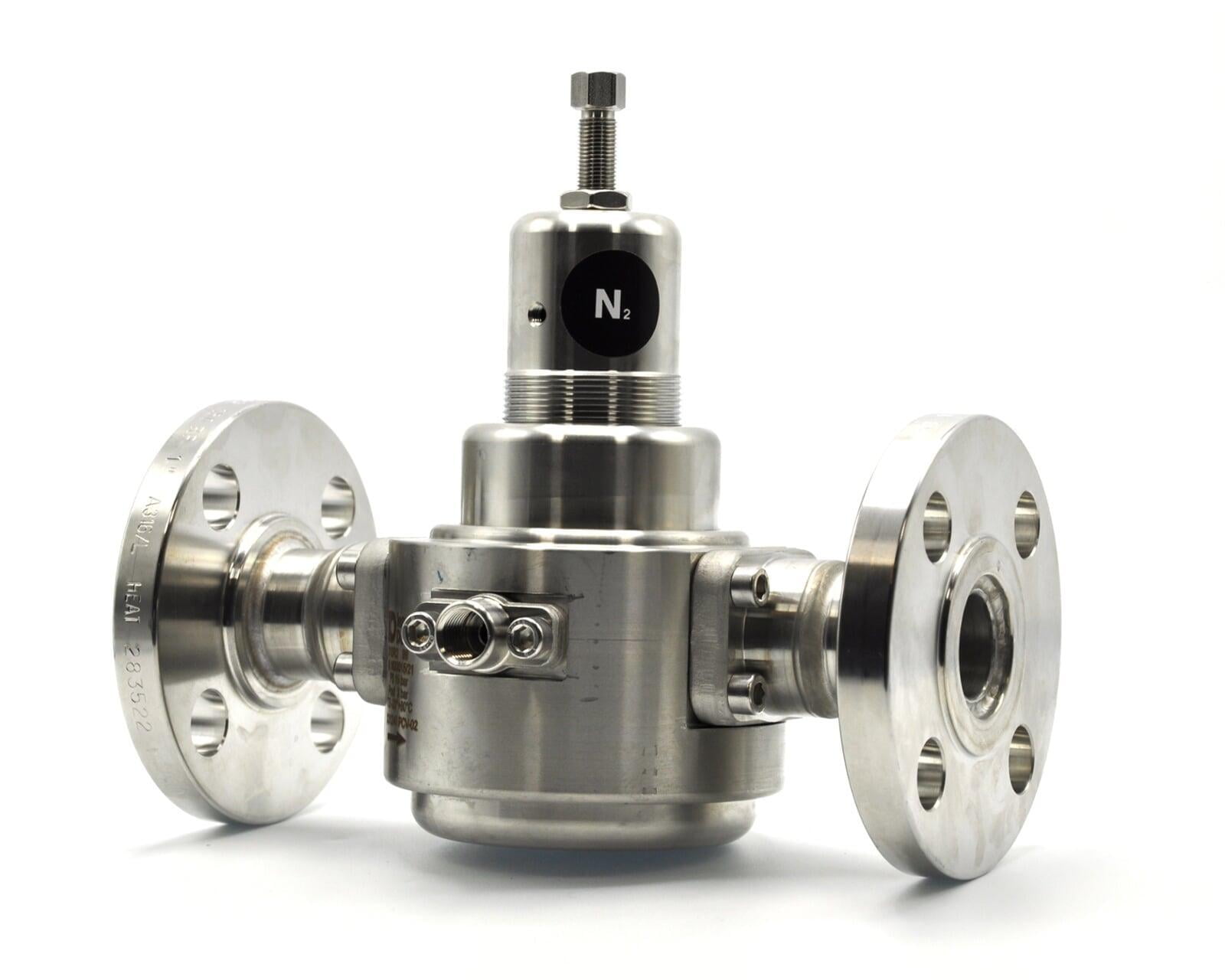

Model: 310R2
310R2 range of stainless steel pressure regulators from ID Insert Deal Srl are suitable for use on air, gas or liquids for pressures up to 50bar. The regulator uses a balanced valve and piston design for accurate pressure control up to 50ar with a handwheel operation. This regulator is machined from stainless steel and available in 4 sizes: 3/4", 1", 1.25" and 1.5" each with 1/4" gauge ports. This regulator complies with PED and can be supplied with ATEX or EAC-Ex certification for hazardous area duty. 310R2 can be supplied with MOCA EC 1935/2004 certification for use on food related processes

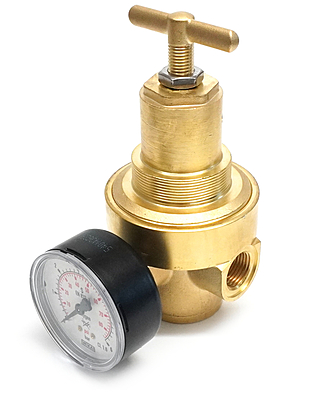

110R2
The model 10: 110R2 range of brass pressure regulators from ID Insert Deal Srl are suitable for use on air, gas or liquids for pressures up to 50bar. The regulator uses a piston design for accurate pressure control up to 50bar with a handwheel operation. This regulator is machined from solid brass with stainless steel thread adaptors and available in 2 sizes: 3/4" and 1", each with 1/4" gauge ports. This regulator complies with PED and can be supplied with ATEX certification for hazardous area duty.
