Filter regulator 1/4"NPT Autodrain FR04411S07SSNB0
£299.31
Out of stock
Tags:
Instrumentation Filter Regulator. 1/4" NPTF. 316L Stainless Steel. Cv 0.9. Regulation range: 0.4-10 bar. Relieving. Automatic Condensate Drain. Maximum Inlet Pressure: 16 bar. 5 micron filter element, 316L Stainless Steel. Seals: NBR. Working Temp: -20C to +80C. 2x 1/8"NPT pressure gauge connections. 1 x SS316 socket pressure plug included. ATEX 94/9/CE II2GD c IICT6 X. GOST EAC. 40mm all stainless steel pressure gauge 0-10bar with kPa and psi, 1/8"NPT
Product Details

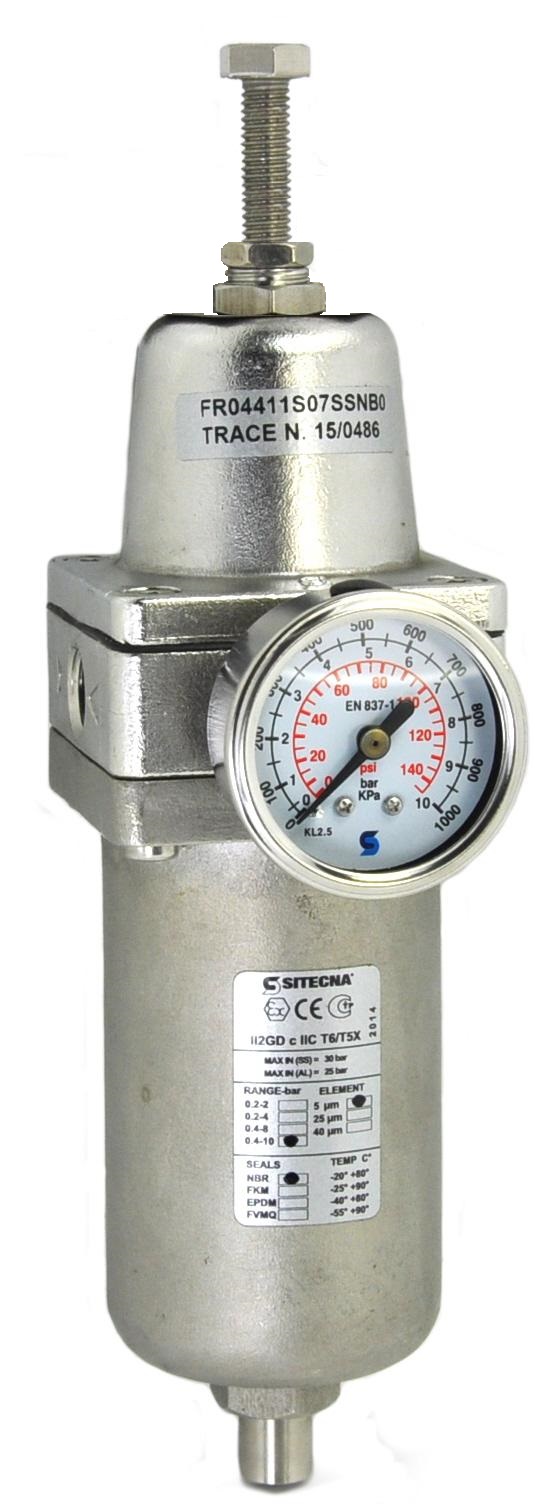

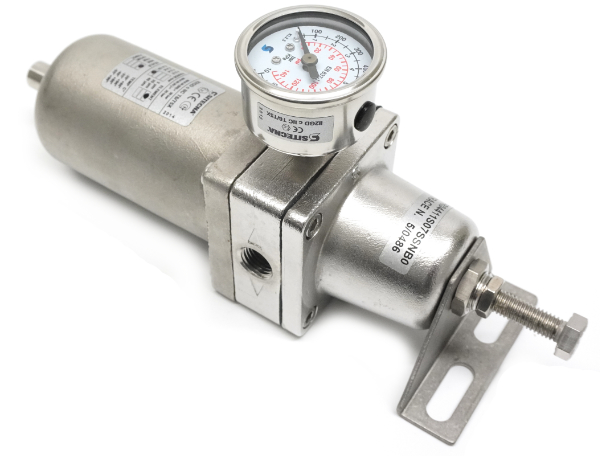

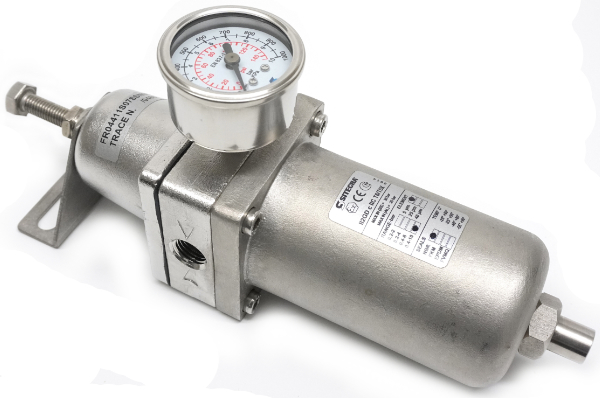

Instrumentation Filter Regulator. Manufacturer: Sitecna
- Automatic condensate drain
- Relieving
- 1/4" NPTF process connections and 2x 1/8"NPT pressure gauge ports
- 316L Stainless Steel
- Cv 0.9
- Regulation range: 0.4-10 bar
- Maximum Inlet Pressure: 16 bar
- 5 micron filter element
- Seals: NBR.
- Working Temp: -20C to +80C
- 1 x SS316 socket pressure plug included
- Certification: ATEX 94/9/CE II2GD c IICT6 X. GOST EAC
- Supplied complete with 40mm all stainless steel pressure gauge 0-10bar with kPa and psi, 1/8"NPT
Datasheet
