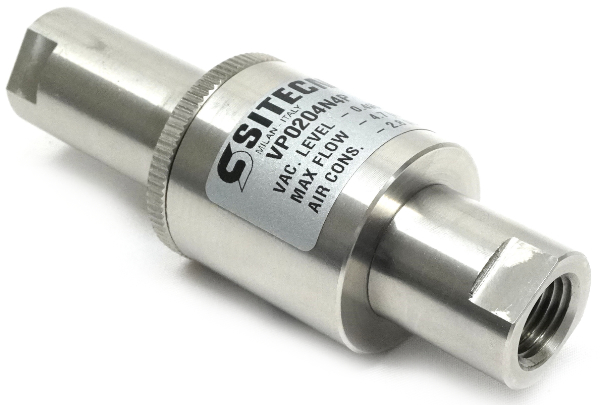

ST-VP0204N4P Variable Flow Vacuum Eductor
£59.45
Tags:
Sitecna VP series Pneumatic Vacuum eductors allow an accurate means of setting vacuum flow
Choose Quantity
Product Details
- Low cost
- Very compact size
- Eliminates the need for an electrical supply or vibration damping in sampling or analytic panels
- Enhances the accuracy of the measurements
- Venturi adjustment by loosening the lock ring
- Outlet side of the VP can be screwed in or out thus reducing or increasing the corresponding change in the air flow and vacuum generation
- Precision machined from solid 316L stainless steel or aluminium
- The VP vacuum eductor is ideal for use in gas sampling systems & pneumatic automation systems
- 316L Stainless Steel or aluminium
- ATEX certification
- Vacuum flow up to 4.7l/sec and -0.49bar
- Non clogging design with low air consumption ratio
- Manufactured in Italy to strict quality controls with full material traceability
