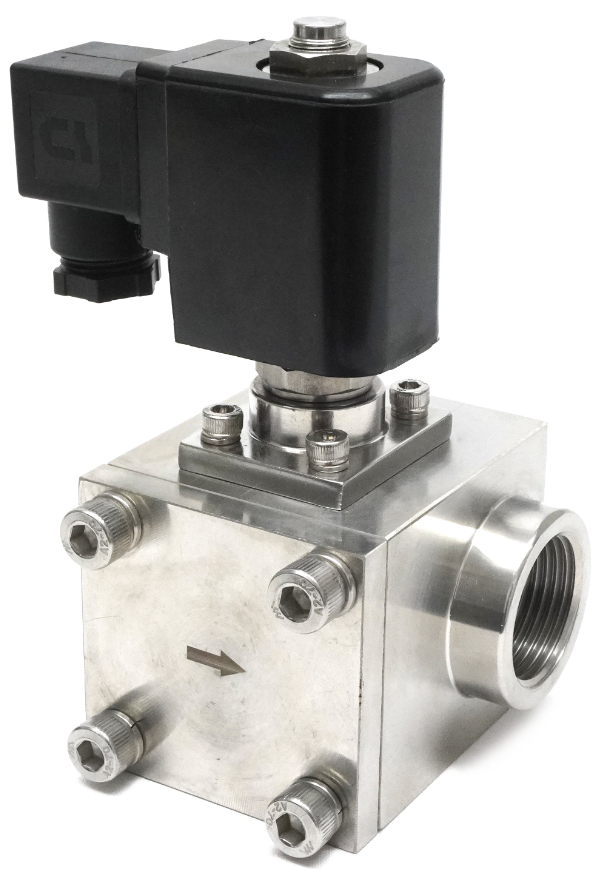

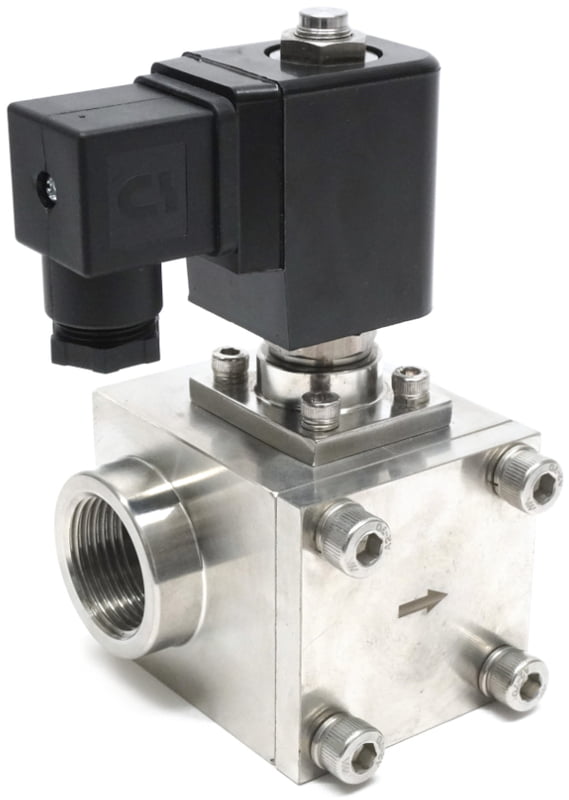

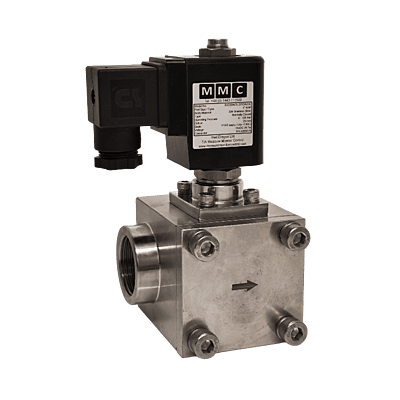

High Pressure Solenoid Valve 1"BSP 304SS PTFE 6-120bar BX320H25L3P/24VDC
£529.40
Tags:
Solenoid Valve 1" BSP Two Way Normally Closed. High Pressure Pilot Piston Design. 304 stainless steel body. PTFE seals. Operating pressure range: 6-120bar(DC). 25mm internal orifice. C46 series 24VDC 27W solenoid coil and DIN 43650-A electrical socket connector
Choose Quantity
Product Details
High Pressure, high flow solenoid valves:
- 1"BSP
- Two Way Normally Closed
- Suitable for high pressure media such as gas, water etc.
- 304 stainless steel body
- Operating pressure range: 6-160bar
- 25mm internal orifice for high flow applications
- PTFE seals
- 24VDC C46 series 27W DIN solenoid coil (ask for other voltages)
