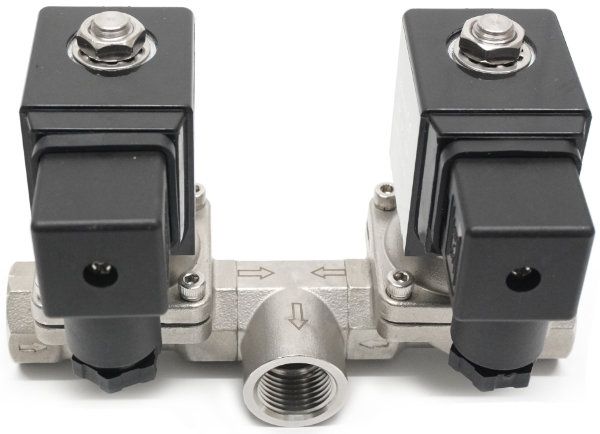

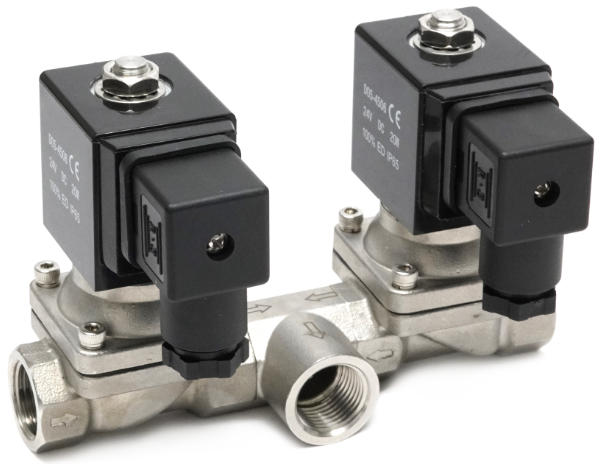

Solenoid Valve 3/2 Mixing 1/2"BSP 304SS EPDM 0-6bar 24VDC IP65 RX38.A
£122.15
Tags:
1/2" BSP 3/2 Mixing solenoid valve. 304 stainless steel body. Suitable for liquid and gaseous media, compatible with the seals and body materials. EPDM seals. 0-6bar. A Type: 2 inlets 1 outlet, port 2 & 3 inlet, port 1 outlet. Cv3.5. 24VDC DIN
Choose Quantity
Product Details
Special Purpose Solenoid Valve series:
- 3/2 Mixing solenoid valve
- Function: . A Type: 2 inlets 1 outlet, port 2 & 3 inlet, port 1 outlet
- 1/2"BSP (all ports)
- Operating pressure range: 0-10bar (220VAC), 0-6bar (24VDC)
- Body material: 304 stainless steel
- Cv3.5
- Media: suitable for liquid and gaseous media, compatible with the seals and body materials
- Seals: EPDM
- Operating pressure range: 0-6bar
- 24VDC IP65 DIN solenoid coils
RX38 Datasheet
Other sizes available from 1/2" to 1". Contact us for further information:
Tel: 01443 772500 sales@measuremonitorcontrol.com
