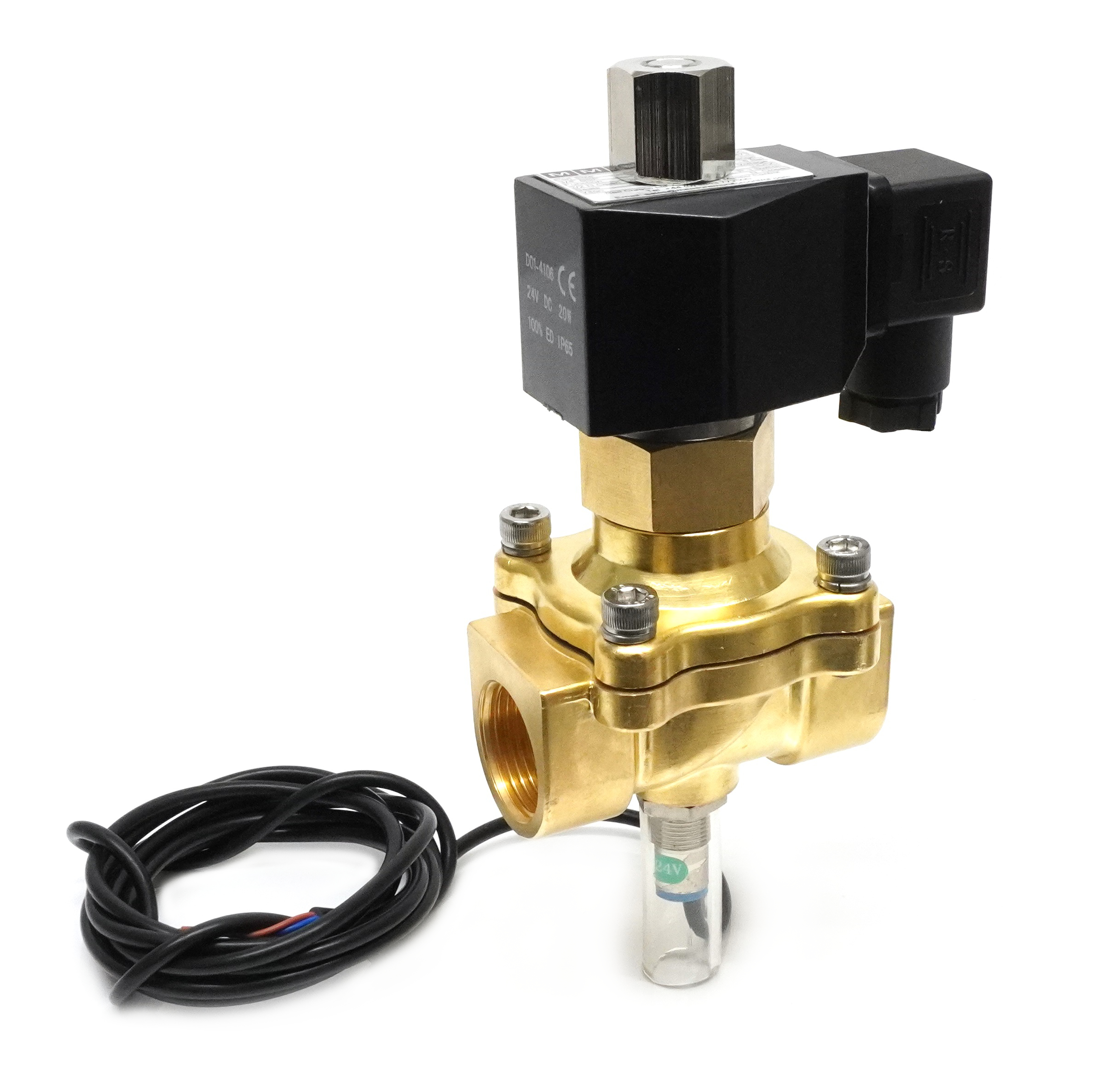

Solenoid Valve 3/4"BSP 2/2 Normally Open VITON Position Switch 220VAC IP65
£182.27
Out of stock
Tags:
Solenoid Valve 3/4"BSP Two Way Normally Open. Direct Acting. Brass body, stainless steel internal moving parts. Internal orifice: 20mm. Differential pressure range: 0-6bar. VITON seals. Complete with Position Indication Switch. Normally Closed. DC12-24V. Current consumption: less than, or equal to 15mA. Load current: 200 mA. Cable length: 2 metres. RED LED light indicates when the solenoid valve is open. Solenoid coil 220VAC. DIN 43650-A electrical socket connector
Product Details
BX42 series, position feedback solenoid valve. ideal for BMS systems where valve position is fed back to the panel:
- Solenoid Valve 3/4"BSP Two Way Normally Open
- Direct Acting. Brass body, stainless steel internal moving parts
- Differential pressure range: 0-6bar
- VITON seals for various fluids, air, diesel etc.
- Complete with Position Indication Switch (normally Closed)
- DC12-24V. Current consumption: less than, or equal to 15mA. Load current: 200 mA
- Cable length: 2 metres
- RED LED light indicates when the solenoid valve is open
- Solenoid coil 220VAC
- DIN 43650-A electrical socket connector
