Valves / Pneumatic Valves & Regulators / Air Pilot Operated. Angle Seat Piston / Pneumatic Valve Angle Seat Type 1 1/4"BSP Normally Closed 316SS SX90I32N3 /

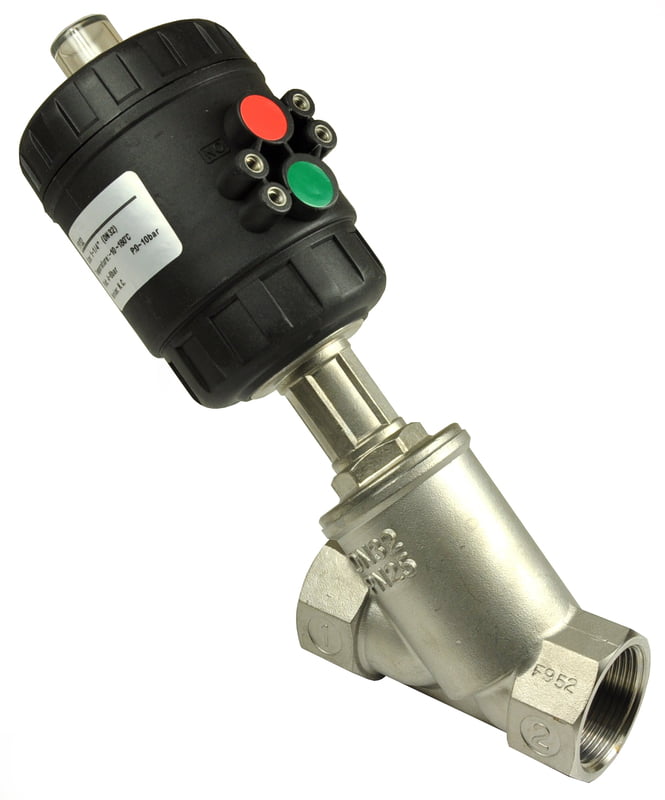

Pneumatic Valve Angle Seat Type 1 1/4"BSP Normally Closed 316SS SX90I32N3

£105.56 £132.85
Tags:
Pneumatic Angle Seat Piston Valve. 1 1/4"BSP Two Way Normally Closed. 316 stainless steel body. PTFE seals. (-10°C to +180°C ). NAMUR or nipple mount for the control valve. Differential pressure range: 0-10bar. Kv 315. Gaseous and liquid media compatible with seal and body materials
Choose Quantity
+ Add to Cart
Product Details
Pneumatic Angle Seat Piston Valve, DN32:
  • 1 1/4"BSP Two Way Normally Closed
  • 316 stainless steel body
  • PTFE seals. (-10°C to +180°C )
  • NAMUR or nipple mount for the control valve
  • Differential pressure range: 0-10bar
  • Kv 315
  • Gaseous and liquid media compatible with seal and body materials
