R04301B00ALNB2 pressure regulator 1/4"NPT Aluminium ATEX
£96.15
Tags:
Instrumentation Regulator. 1/4" NPTF. Epoxy coated copper free aluminium alloy body. Cv 0.9. Regulation range: 0.4-8 bar. Relieving. Maximum Inlet Pressure: 25 bar. Seals: NBR. Working Temp: -20C to +80C. 2x 1/8"NPT pressure gauge connections. Mounting bracket & 1 x SS316 socket pressure plug included. II2GD c IICT6 X. 40mm pressure gauge: 304SS case, brass wetted parts, 0-10bar with kPa and psi, 1/8"NPT
Choose Quantity
Product Details

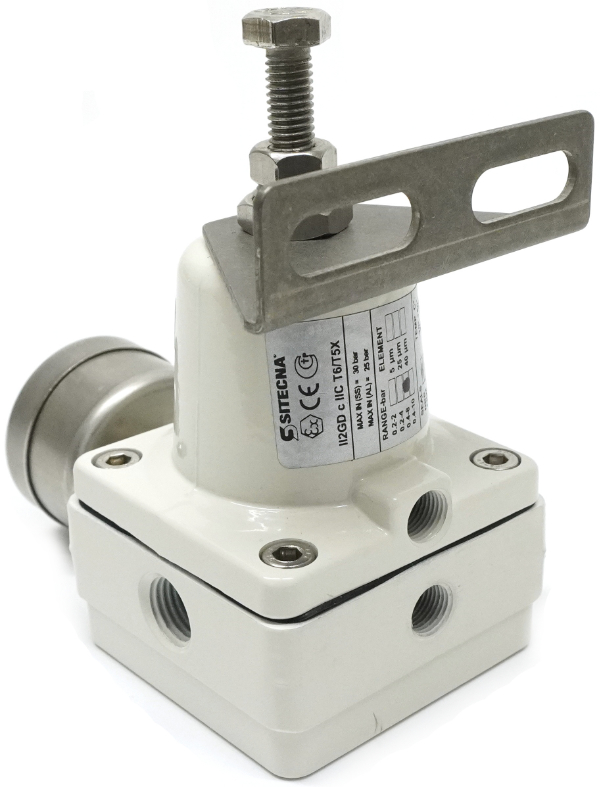

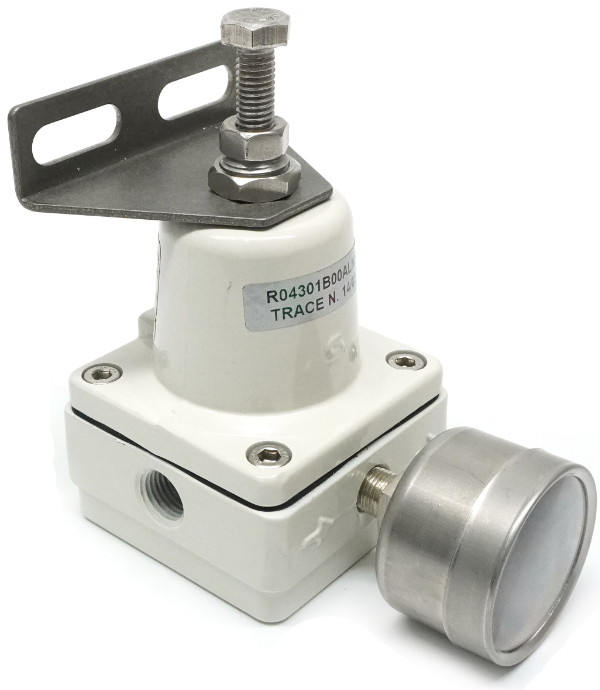

Sitecna Instrumentation Regulator:
- 1/4" NPTF process connections, 2 x 1/8"NPT gauge ports
- Epoxy coated copper free aluminium alloy body
- Cv 0.9
- Regulation range: 0.4-8 bar
- Relieving
- Maximum Inlet Pressure: 25 bar
- Seals: NBR
- Working Temperature: -20C to +80C
- Mounting bracket included
- SS316 socket pressure plug included
- Certification: II2GD c IICT6 X
- 40mm 1/8"NPT back mount stainless steel pressure gauge
Datasheet
