Air Flow Sensor CP.GS.AFS

Air Flow Sensor CP.GS.AFS

Air Flow Sensor/ Air Differential Pressure Switch Model: ADPS-08-2-N
Choose Quantity
+ Add to Cart
Product Details
Take control of your ventilation system with the ADPS-08-2-N Air Differential Pressure Switch. This robust and reliable device is engineered to monitor the proper operation of your air circulation for your Gas Interlock Safety System, providing a critical safety measure that meets industry standards.

Designed for versatility, the ADPS-08-2-N covers a wide pressure differential range of 20 to 300Pa, allowing you to tailor the settings to your specific requirements. The easily adjustable set point puts you in the driver's seat, empowering you to fine-tune the system and monitor optimal air flow.

Compliance is key, and this pressure switch delivers. Fully compliant NEMA 13, IP54, you can trust that your ventilation system meets the rigorous safety guidelines demanded by regulatory bodies. When interfaced with a Intelligas system, the ADPS-08-2-N provides a seamless interlock solution, safeguarding your facility and its occupants.

Convenience is built-in, with a comprehensive duct kit that includes 2 meters of hose, 2 pitot tubes, and all necessary mounting hardware. Installation is a breeze, allowing you to get your system up and running quickly and efficiently.

Invest in the ADPS-08-2-N Air Differential Pressure Switch and experience the confidence that comes with a properly functioning, code-compliant ventilation system. Protect your facility, your employees, and your peace of mind with this industry-leading pressure switch

Technical Specification:
  • Pressure Range: 0.08 - 1.20" W.C. (20 - 300 Pa)
  • Maximum Pressure: 40" W.C (10 kPa)
  • Contact Rating: 250vAC 1.5 A (0.4 A)
  • Maximum Cycles per minute: 6 pm
  • Working Temperature: -4°F to 185°F (-20°C to 85°C)
  • Mounting position: Vertical
  • Protection Class: NEMA 13, IP54

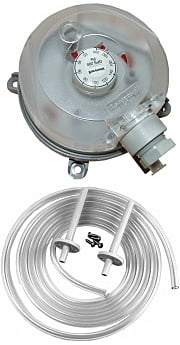

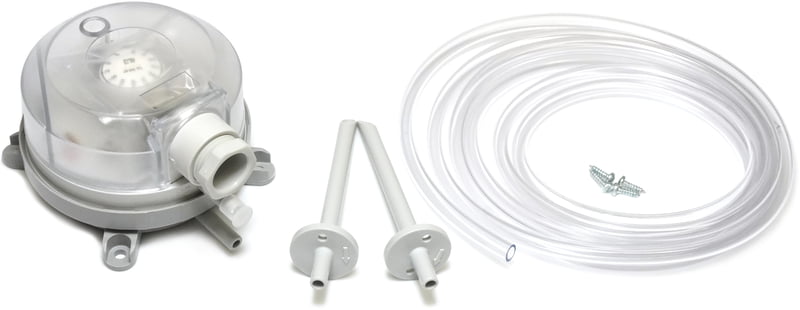

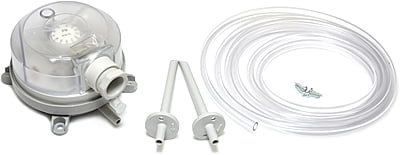

  • Supplied with installation kit (2m of hose, 2x pitot tubes & fixing screws)
  • Made in the EU.
