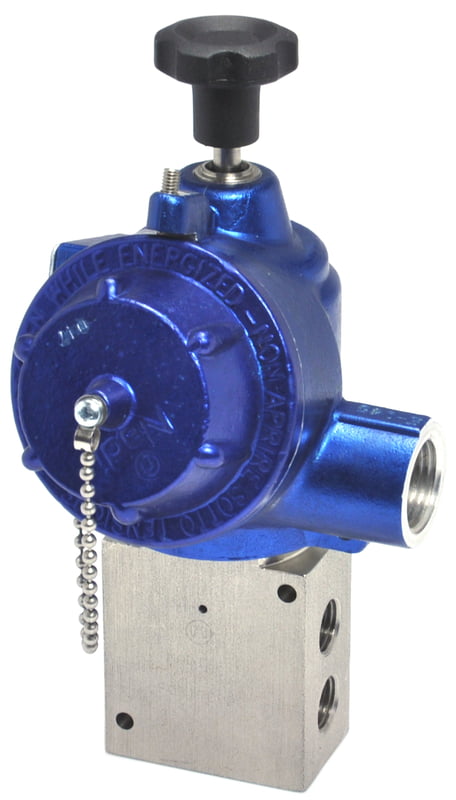

Solenoid Valve 1/4"NPT 3/2 Manual Reset ES. 316SS EExd IIC 24VDC M20
£558.34
Tags:
1/4" NPT Solenoid Valve. 3/2 Manual Reset. Direct Acting. ES Operation: Energising the coil returns the valve to the 'Rest' position. 316 Stainless Steel Body. Orifice 7.0mm. HNBR Seals -45 to +90C. 0-14 Bar (AC/DC). Kv12. B6/E 24VDC 11W. II 2 GD EEx-d IIC (-60C to +60C Ambient). ATEX. IP67 Anodised Aluminium Solenoid Coil Housing. Female Cable Gland Entry: M20*1.5mm. ATEX Certificate included
Choose Quantity
Product Details
1/4"NPT 3/2 Manual Reset Solenoid Valve. ATEX EExd IIC. -60C to +60C ambient:
- Direct Acting

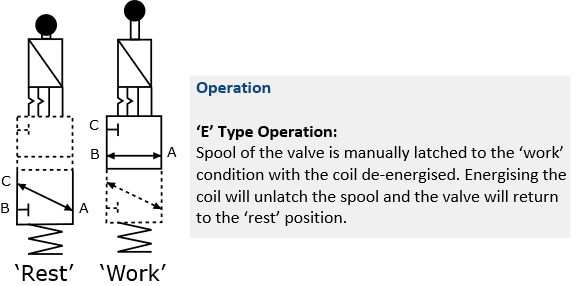

- ES Operation: Energising the coil returns the valve to the 'Rest' position
- 316 Stainless Steel Body
- Orifice 7.0mm
- HNBR Seals -45 to +90C
- Operating pressure range: 0-14 Bar (AC/DC)
- Flow factor: Kv12
- B6/E 24VDC 11W
- II 2 GD EEx-d IIC (-60C to +60C Ambient). ATEX
- IP67 Anodised Aluminium Solenoid Coil Housing
- Female Cable Gland Entry: M20*1.5mm
- ATEX Certificate included
