Laundry Pump AD4510Y0YEP00000

Manufacturer Aqua S.p.A OEM Code: AD4510Y0YEP00000

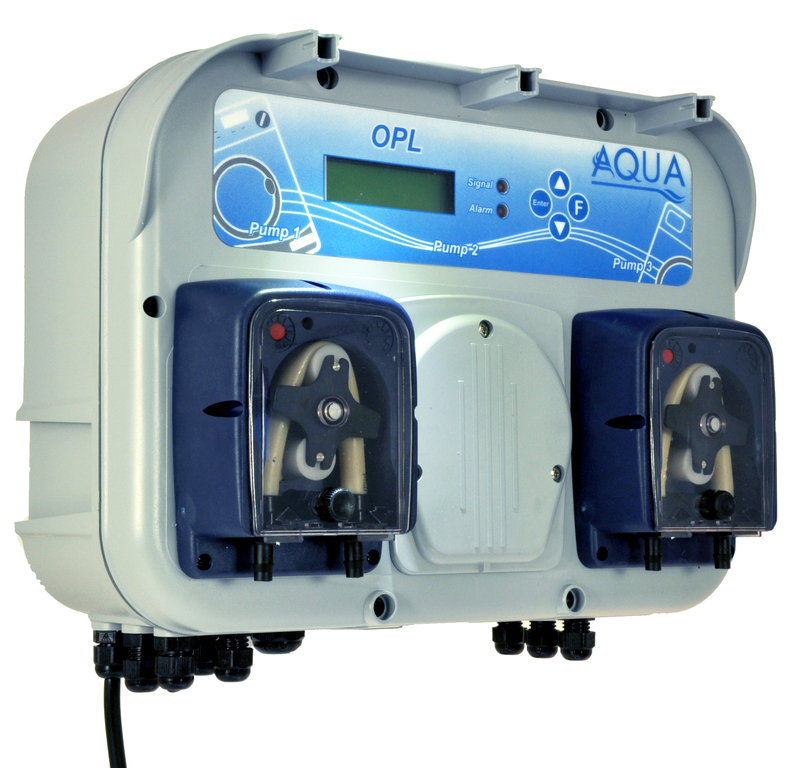

Multi voltage twin/(triple) chemical dosing laundry pump

The NEW AQUA OPL1 system has been designed to dose up to three chemicals into a small laundry machines. Inside you will find some of the latest microprocessor digital technology coupled with a LCD display, the AQUA OPL1 is very easy to program and able to make the most economical use of each chemical.
In addition to these basic features, now thanks to Bluetooth technology the AQUA OPL1 can be connect with a PDA or Smartphone. The Bluetooth makes an easy the way to program this system, no more uncomfortable situations behind the laundry machine.

Versatile. Easy to transform a 2-pumps system in a 3-pumps system by just removing the cover.
Moreover the Bluetooth can be mounted on the systems already on the field.

Efficient. Saves to memory all the data statistics regarding chemical consumption, working time, trigger signal counter and totals per day.

Reliable.
Password
The programming and the statistics data are fully protected by a 4-digit password.
Level alarms Each chemical has its input for the level probe.
Protection degree
IP65 against dust and water sprays.
Pharmed® tube
Outlasts silicone tubing in peristaltic pumps by up to 30 times.
Very good general chemical resistance.
Temperature resistant from -51° C (-60° F) to 135° C (275° F).
Meets USP Class VI, FDA and NSF criteria.

Technical Specification:

• Power: 100÷240VAC 50/60Hz (fuse 1.6A delayed)
• Absorption: 20 Watts (max)
• Trigger signals: 3 (Charge, rinse and wash.) 24÷240VAC
• Alarm Output: 30vDC 500mA
• Relay Output: 250vAC-5A
• Level Inputs: 4 (Chemical 1, Chemical 2, Chemical 3 and Washing Tank.

Hydraulics & Pump Settings:

Flow rate peristaltic pump 1 - 10 l/h @ 0,1 bar - Pharmed® tube with barb fitting for 6 mm ID tube.
Pump 1 controlled by charge signal and programmable by:
* Time and speed
* Speed adjustable from 15 to 100%
* Time adjustable from 0 to 180 seconds or from 4 to 60 minutes
* Delay time adjustable from 0 to 300 seconds
* Lockout time adjustable from 0 to 99 minutes

Flow rate peristaltic pump 2 - 10 l/h @ 0,1 bar - Pharmed® tube with barb fitting for 6 mm ID tube.
Pump 2 controlled by rinse signal and programmable by:
* Time and speed
* Speed adjustable from 15 to 100%
* Time adjustable from 0 to 180 seconds or from 4 to 60 minutes
* Delay time adjustable from 0 to 300 seconds
* Lockout time adjustable from 0 to 99 minutes

Flow rate peristaltic pump 3 - 10 l/h @ 0,1 bar - Pharmed® tube with barb fitting for 6 mm ID tube
Pump 3 controlled by wash signal and programmable by:
* Time and speed
* Speed adjustable from 15 to 100%
* Time adjustable from 0 to 180 seconds or from 4 to 60 minutes
* Delay time adjustable from 0 to 300 seconds
* Lockout time adjustable from 0 to 99 minutes
