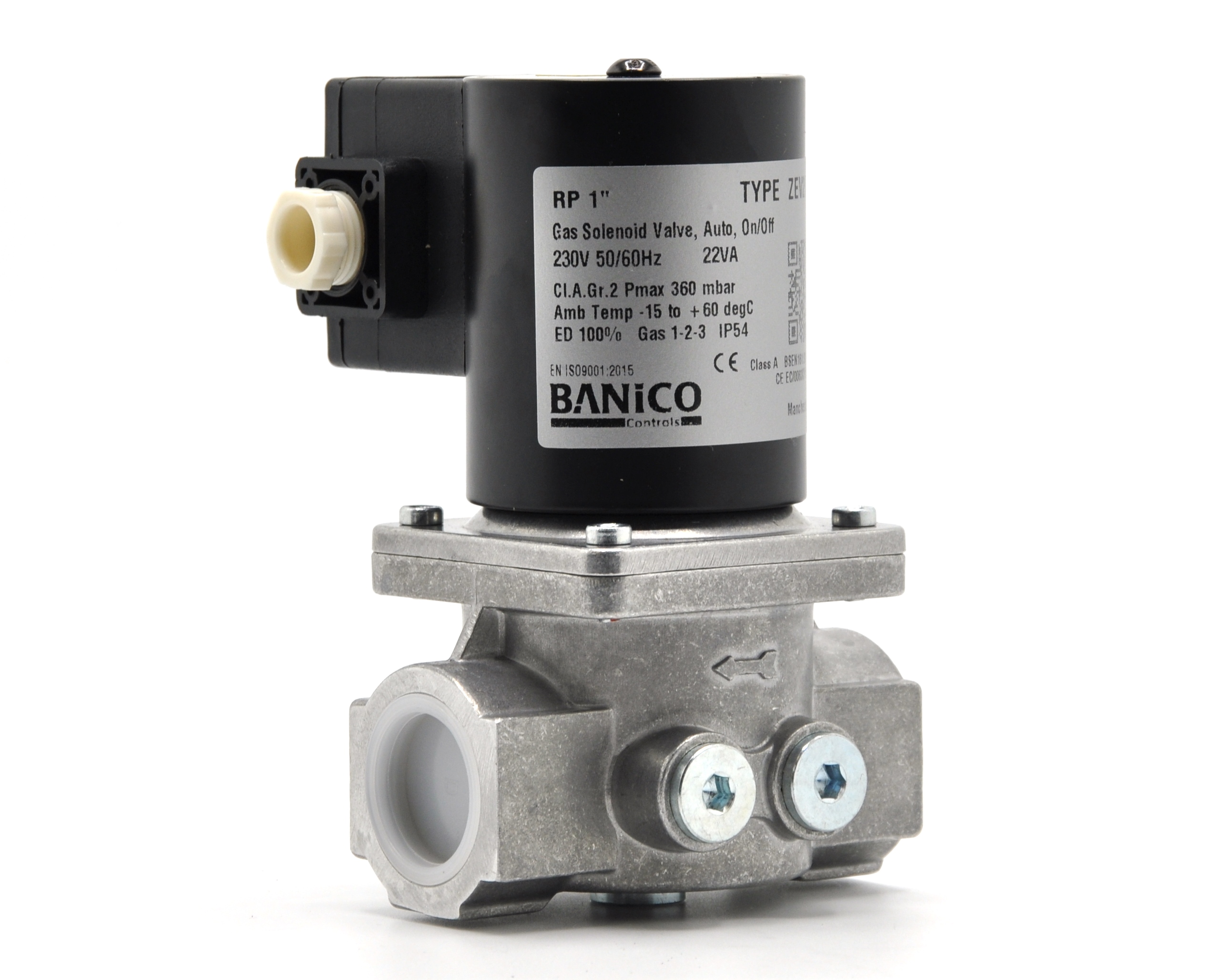

Gas Solenoid Valve 1" Class A EN161 CP.SV.25C

APPLICATION

• Gas Solenoid Valves are used for safety and control of gas for shut-off in gas feed pipes
• Suitable for various gasses, including Natural gas, Propane and LPG
• ¼” Inlet and outlet plugs suitable for CPI switch, pressure gauge, connection to proving and interlock systems

OPERATION AND INSTALLATION

• Two-way, normally-closed – energise to open.
• Rapid opening.
• Mounting direct on pipeline more or less 90 degrees (max) from the vertical axis.

TECHNICAL SPECIFICATION

• Opening time <1 second.
• Closing time <1 second.
• Max number of operations : 20 per minute.
• ¼” Inlet and outlet plugs.
• Incorporated AISI 303 steel mesh filter.
• Cable entry gland PG11 Live, Neutral, Earth.
• Protection to IP54
• NBR based seal with a strong resistance to hydrocarbons (UNI 4916-74).
• Bodies and flanges in diecast aluminium.
• AISI 302 steel pressure spring.
• Chromate Fe 37 steel armature.
• Ambient temperature -15°C to 60°C.
• Coil temperature about 70°C

STANDARDS AND APPROVALS

• Class “A” BS EN161:2002 Approved.
• British Gas & European Standards.
• 90/396/EEC - 73/23/EEC - 89/336/EEC .
• Certificate CE EC-87/07/009.

ELECTRICAL SPECIFICATION

• Supply voltage 230V (+10%-15%) 50-60Hz.
• 24 Vac also available upon request.
• Coils to Class F, 360° rotation, suitable for permanent excitation
