Easypress Booster Controller CP.PU.7036

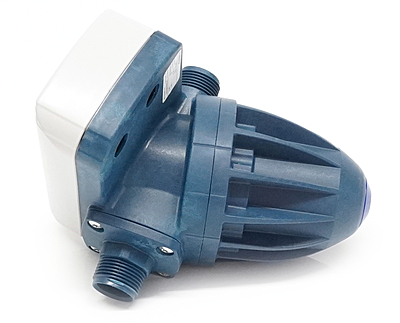

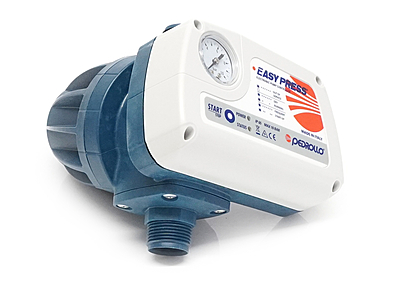

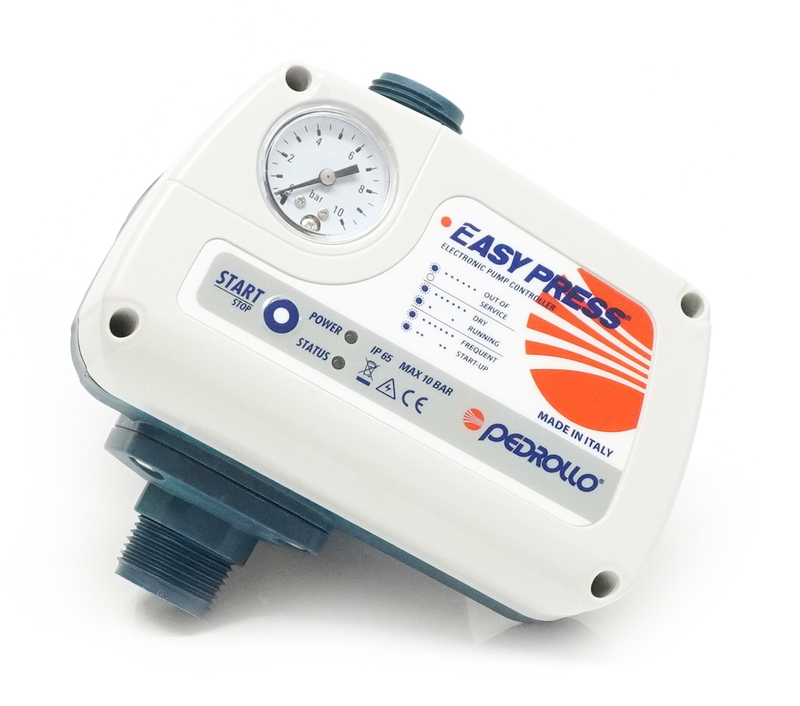

EASYPRESS II Electronic pump controllers

The EASYPRESS series consists of electronic devices designed to start (when a tap is turned on) and stop (when a tap is turned off) single-phase pumps.
The microprocessor protects the pump from dangerous working conditions, such as dry running, and allows the pump to be restarted either automatically or manually. It also prevents the pump from starting-up too often when small leaks are present within an installation. There are three different models available to choose from, each with a different start-up pressure and easily identified by the coloured cap positioned at the rear of EASYPRESS, suitable for delivering supply to different heights.

Pumped liquid: clean water
Use: domestic
Type: surface
Range: electronic pump controllers

Performance range
Max flow rate: 200 l/min (12 m³/h)
Working pressure: 10 bar
Start-up pressure: 1.5 bar
Application limits
Maximum liquid temperature +65 °C
Ambient temperature up to +40 °C
Burst pressure > 40 bar
Protection: IP 65
VOLTAGE: 230 V - Frequency: 50/60 Hz
Max current: 16 A EASYPRESS II
