Super High Pressure Solenoid Valve Super High Pressure Solenoid Valve 3/4"BSP 2/2NC 316SS 1-350bar 110VDC
£1,414.27
Tags:
Solenoid Valve Pilot Piston. Special High Pressure model. Power station applications with 110VDC. 3/4" BSP. 20mm orifice. Two Way Normally Closed. 316 Stainless steel body. 1-350bar. PTFE seals (-60C to +200C). 110VDC 40W. DIN. IP65. Can be supplied with 24VDC coil for general applications. Other sizes from 1/8" to 2" available
Choose Quantity
Product Details

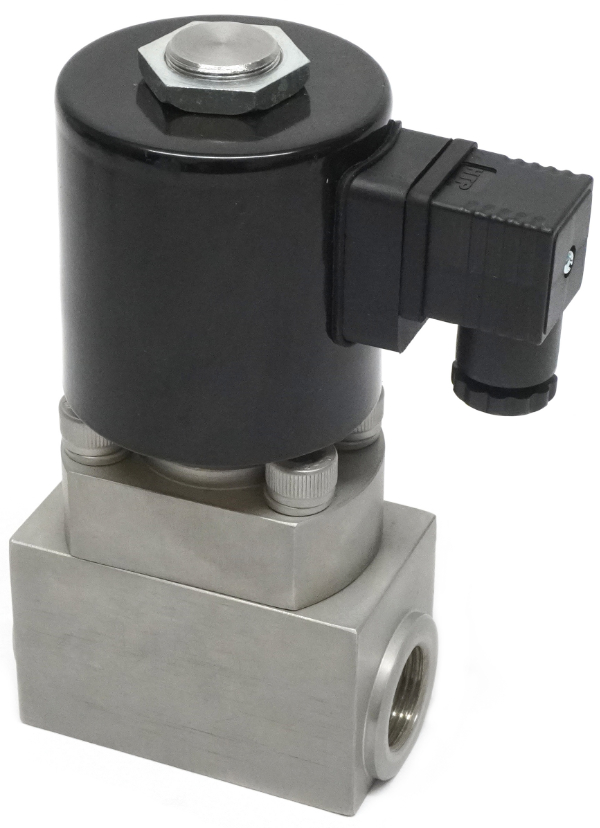

Super High Pressure Solenoid Valve.
- High Pressure Pilot Piston Design
- 3/4" BSP
- Internal orifice: 20mm
- Two Way Normally Closed
- 316 Stainless steel body
- Operating pressure range: 1-350bar
- Seals: PTFE (-60C to +200C)
- Solenoid Coil: 110VDC 40W
- DIN 43650-A electrical socket connector to IP65
- Other voltages available upon request (see SB165-HSD-COIL-24VDC)
- Spare solenoid coil (SB165-HSD-COIL-110VDC)
- 24VDC coil (SB165-HSD-COIL-24VDC)
View & download the Datasheet
Other sizes available from 1/8" to 2". Contact us for further information:
Tel: 01443 772500, sales@measuremonitorcontrol.com
