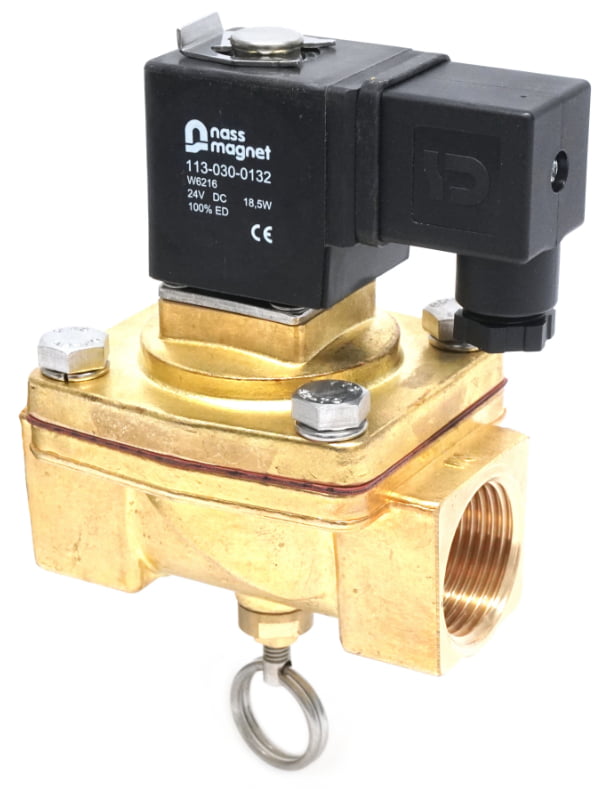

Solenoid Valve 1" BSP 2/2 NC Manual Override Brass VITON 0-3bar 24VDC IP65
£231.02
Tags:
1" BSP Solenoid Valve. Two Way Normally Closed. Direct Acting Diaphragm. Manual Override, Screw Type. Brass Body Orifice 28mm. VITON Seals (-10 to +120C). Operating pressure range: 0-3 Bar (DC). Kv157. C45 Series Coil: 24VDC 18.5W. DIN electrical socket connector to IP65 43650-A. Ideal for tank drain applications
Choose Quantity
Product Details
Direct Acting Solenoid Valve with Manual Override:
- 1" BSP Solenoid Valve (sizes from 3/8" to 2" available)
- Two Way Normally Closed
- Direct Acting Diaphragm

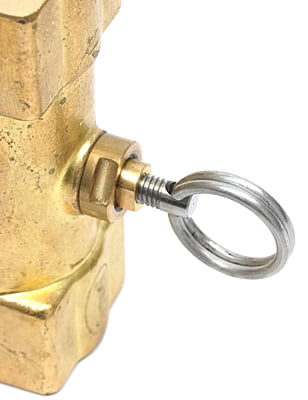

- Manual Override, Screw Type
- Brass Body
- Internal Orifice 28mm
- VITON Seals (-10 to +120C)
- Operating pressure range: 0-3 Bar (DC)
- Kv157
- C45 Series Coil: 24VDC 18.5W
- DIN electrical socket connector to IP65 43650-A
- Other voltages and available upon request
