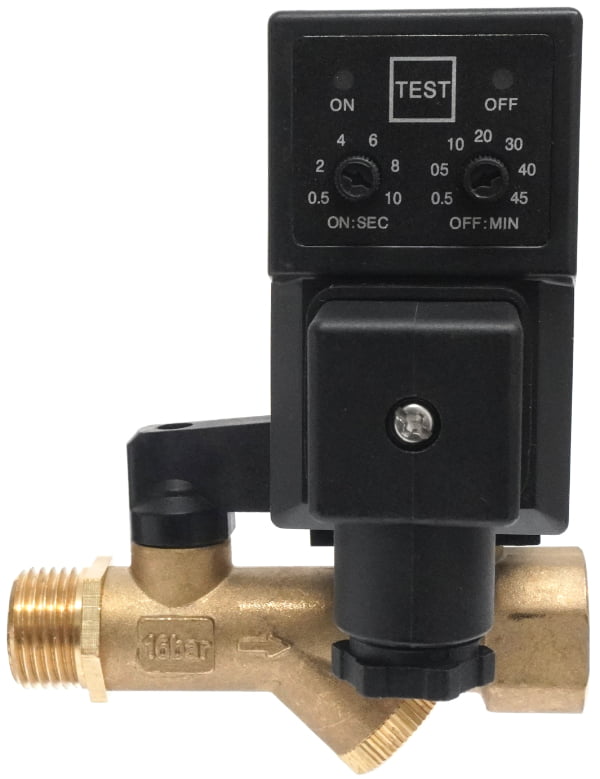

Solenoid Valve Analogue Timer, Drain Cock & Filter 1/4"M x 1/2"F Brass VITON 0-16bar 2/2NC 230VAC IP65
£38.75
Tags:
Compressor Drain Solenoid Valve Assembly. Two Way Normally Closed. Inlet: 1/4"Male, Outlet: 1/2" Female. Working pressure: 0-16Bar. Working Temp.: 0℃~80℃. Highest Media temperature: 160℃. VITON seals. Valve body: Brass. Internal orifice: 3.5mm. Seal material: VITON. Voltage: 230VAC 22VA (+/-10%). Complete with Analogue Timer Type: XESMD-720 series. Time ON from 0.5 to 10s. Time OFF: from 0.5 to 45 min.
Choose Quantity
Product Details
Compressor Drain Solenoid Valve Timer Assembly:
- Two Way Normally Closed
- Inlet: 1/4"Male, Outlet: 1/2" Female
- Isolation/service valve
- Removable gauze filter
- Working pressure: 0-16Bar
- Working Temp.: 0℃~80℃. Highest Media temperature: 160℃
- VITON seals
- Valve body: Brass
- Internal orifice: 3.5mm
- Voltage: 230VAC 22VA (+/-10%)
- Complete with Analogue Timer Model: XESMD-720 series:
Time ON from 0.5 to 10s. Time OFF: from 0.5 to 45 min.
