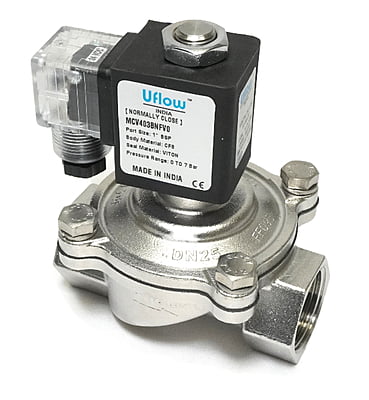

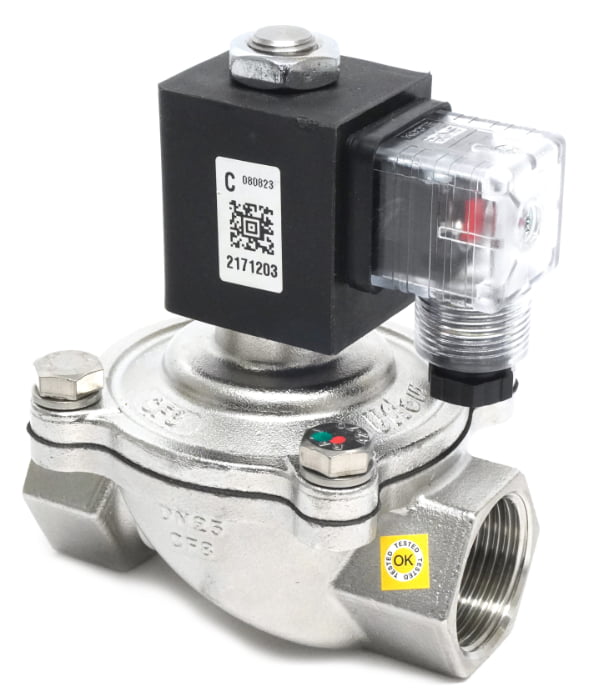

Solenoid Valve 1"BSP 2/2NC 304SS VITON 0-7bar 24VDC IP65
£161.61
Tags:
Solenoid Valve, Two Way Normally Closed, Lift Assisted Diaphragm. 1"BSP. 304 stainless steel body. VITON seals (-10C to +180C). Internal orifice: 25.5mm. Operating pressure range: 0-7bar. Kv flow factor: 8.2 m3/hr. 24VDC 14W DIN solenoid coil. AC pilot construction. DIN 43650-A electrical socket connector
Choose Quantity
Product Details
High Dependency Solenoid Valve which operates from zero bar. Ideal for drain tank applications, safety systems etc.
- Two Way Normally Closed, Lift Assisted Diaphragm
- 1"BSP
- 304 stainless steel body
- VITON seals (-10C to +180C). Ideal for many fluids such as diesel
- High flow internal orifice: 25.5mm
- Operating pressure range: 0-7bar
- Kv flow factor: 8.2 m3/hr
- 24VDC 14W DIN solenoid coil. AC pilot construction
- DIN 43650-A electrical socket connector
