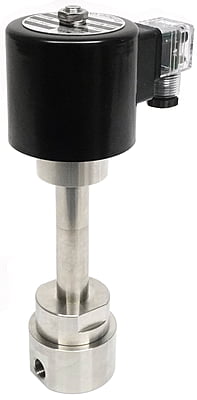

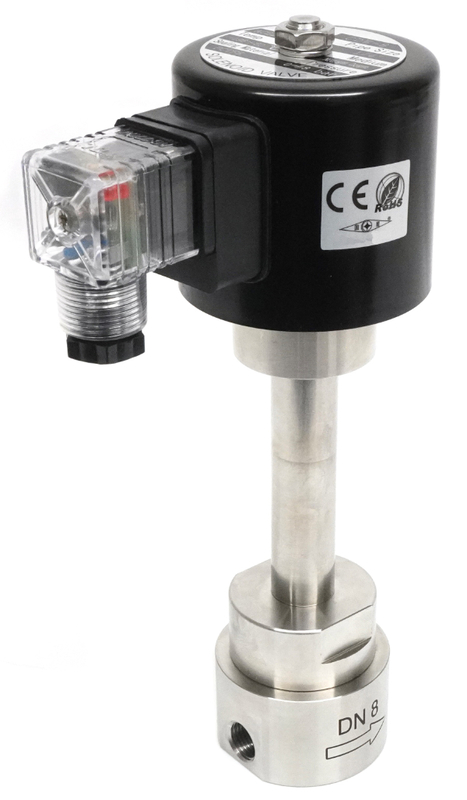

Solenoid Valve Cryogenic 1/4"BSP 2/2NC 8.0mm 304SS 0-8bar 220VAC IP65
£430.00
Tags:
Solenoid Valve. Liquid Nitrogen & Liquid Oxygen Service. 1/4"BSP. Two Way Normally Closed. 304 stainless steel body. 8.0mm internal orifice. Cv 0.9. Operating pressure range: 0-8bar. Amb. temp: -20 to +65C. Media temp: -196C to +65C. PCTFE seals. 220VAC 42W solenoid coil to IP54. DIN 43650-A electrical socket connector
Choose Quantity
Product Details
High Flow 1/4"BSP Cryogenic Solenoid Valve
- Liquid Nitrogen & Liquid Oxygen Service
- Two Way Normally Closed
- 304 stainless steel body
- 8.0mm internal orifice
- Cv 0.9
- Operating pressure range: 0-8bar
- Ambient Temperature: -20 to +65C
- Media temp: -196C to +60C
- PCTFE seals
- 220VAC 42W solenoid coil to IP54
- DIN 43650-A electrical socket connector
- 220VAC. Other voltages available upon request: 24, 110V AC/DC
- 24VDC solenoid coil for RX42
