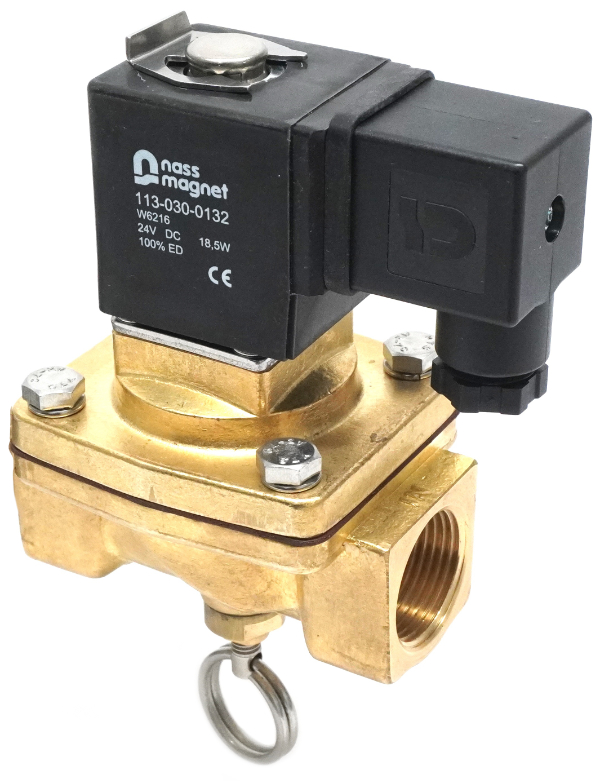

Solenoid Valve 3/4" BSP 2/2 NC Manual Override Brass VITON 0-3.5bar 24VDC IP65
£197.81
Tags:
3/4" BSP Solenoid Valve. Two Way Normally Closed. Direct Acting Diaphragm. Manual Override. Brass Body. Orifice 20mm. VITON Seals (-10 to +120C). Operating pressure range: 0-3.5bar (DC). Kv97. C45 Series Coil: 24VDC 18.5W. DIN electrical socket connector to IP65 43650-A. Ideal for tank drain applications, fuel supplies to day tanks etc.
Choose Quantity
Product Details
Direct Acting Solenoid Valve with Manual Override:
- 3/4" BSP Solenoid Valve (sizes from 3/8" to 2" available)
- Two Way Normally Closed
- Direct Acting Diaphragm

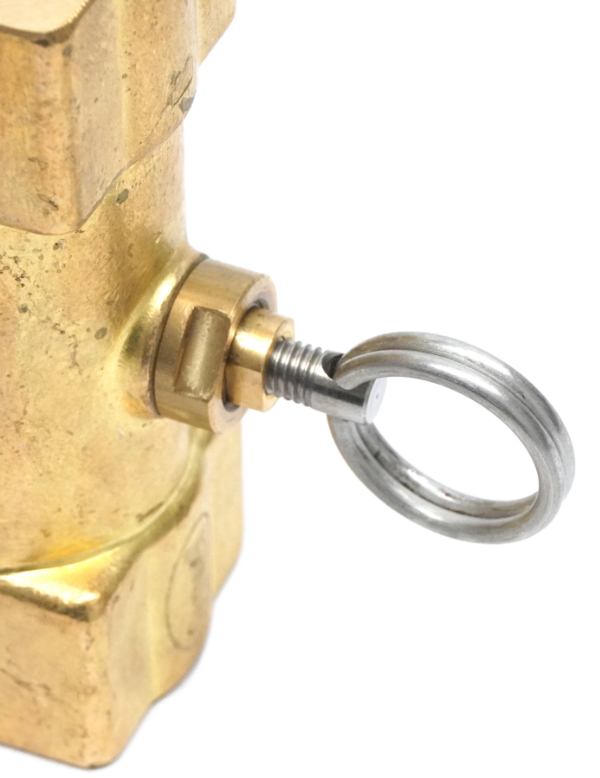

- Manual Override, Screw Type
- Brass Body
- Internal Orifice 20mm
- VITON Seals (-10 to +120C)
- Operating pressure range: 0-3.5 Bar (DC)
- Kv97
- C45 Series Coil: 24VDC 18.5W
- DIN electrical socket connector to IP65 43650-A
- Other voltages and available upon request
