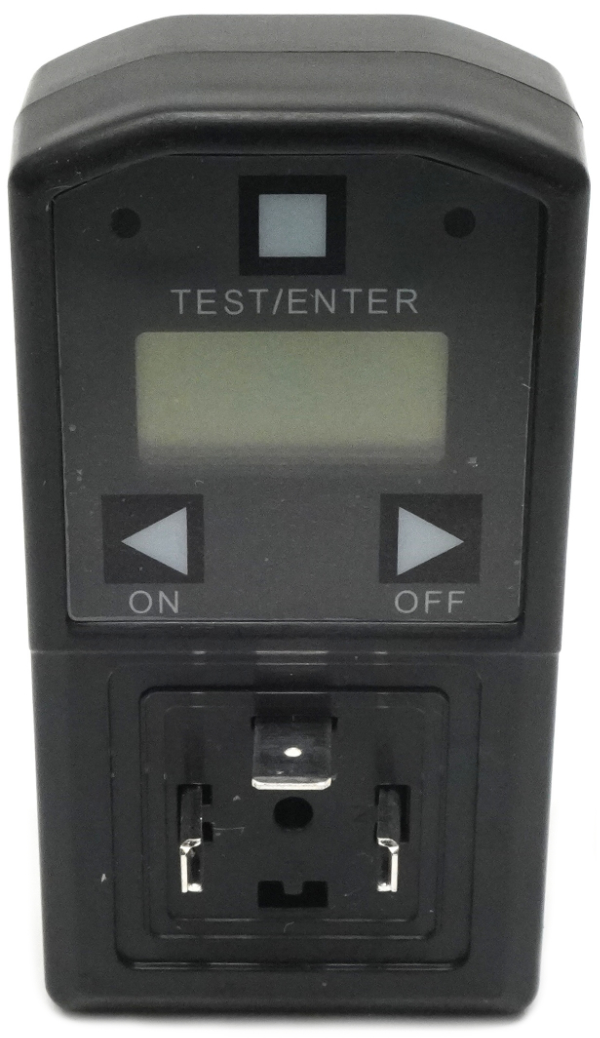

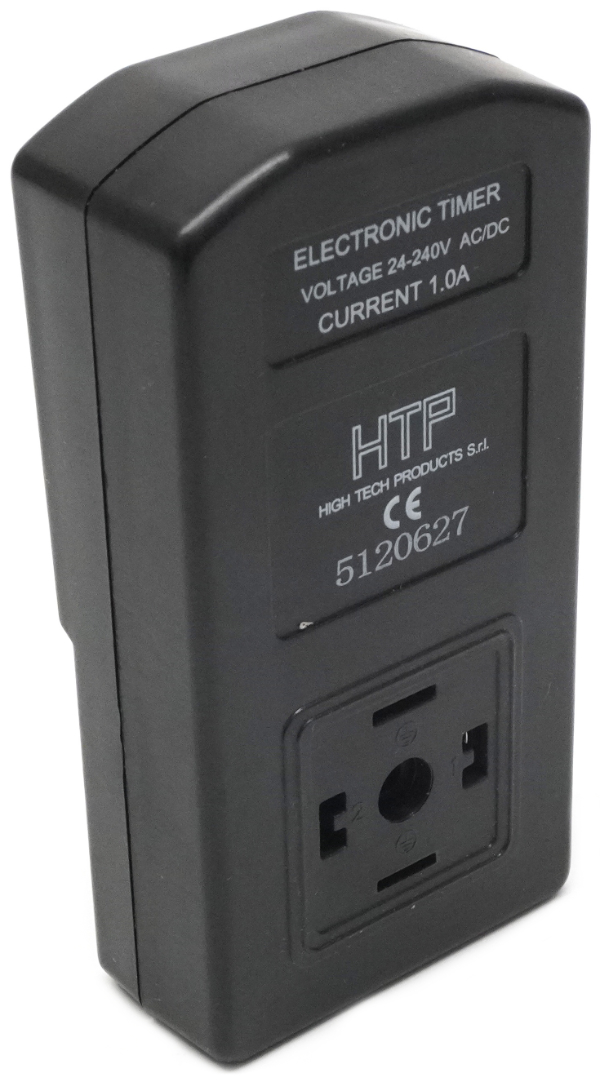

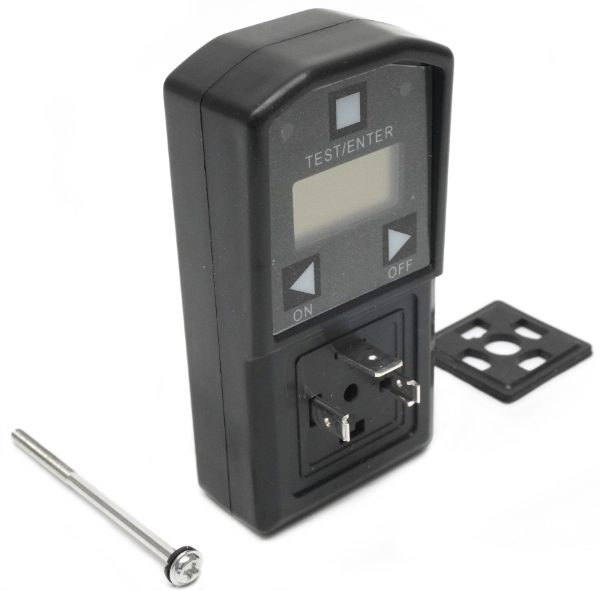

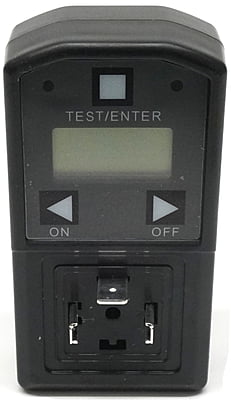

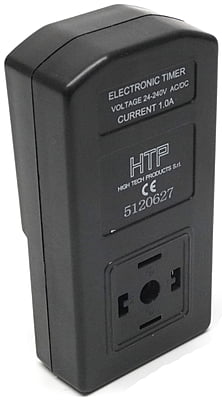

Digital Solenoid Valve Condensate Drain Timer DIN A 20221004
£28.42 £43.71
Tags:
Digital Solenoid Valve Timer. DIN 43650-A. Digital Condensate Drain Timer for DIN 43650-A valves
- Off time: 0 - 9.5 minutes with a .5-minute step 10 - 99 minutes with a 1-minute step
- On time: 0 - 9.5 seconds, with a .5-second step 10 - 99 seconds, with a 1-second step
Choose Quantity
Product Details
- Number of contacts: 2 poles + ground
- Standard: IEC 61076-2-101 (Ed. 1)/ IEC 60947-5-2
- Rated voltage: 24-240 V AC/DC
- Rated current: 1 A
- Current consumption: 4 mA max.
- Switch Holding Voltage: 400V max
- Scale accuracy: +/-10%
- Indicators: red LED - ON, Green LED - OFF
- Mounting Screw: M3 x 51.5mm
- Gasket: NBR
- Protection class (IEC 60529): IP 65
- Temperature range: (-10 C) to (+50 C)
