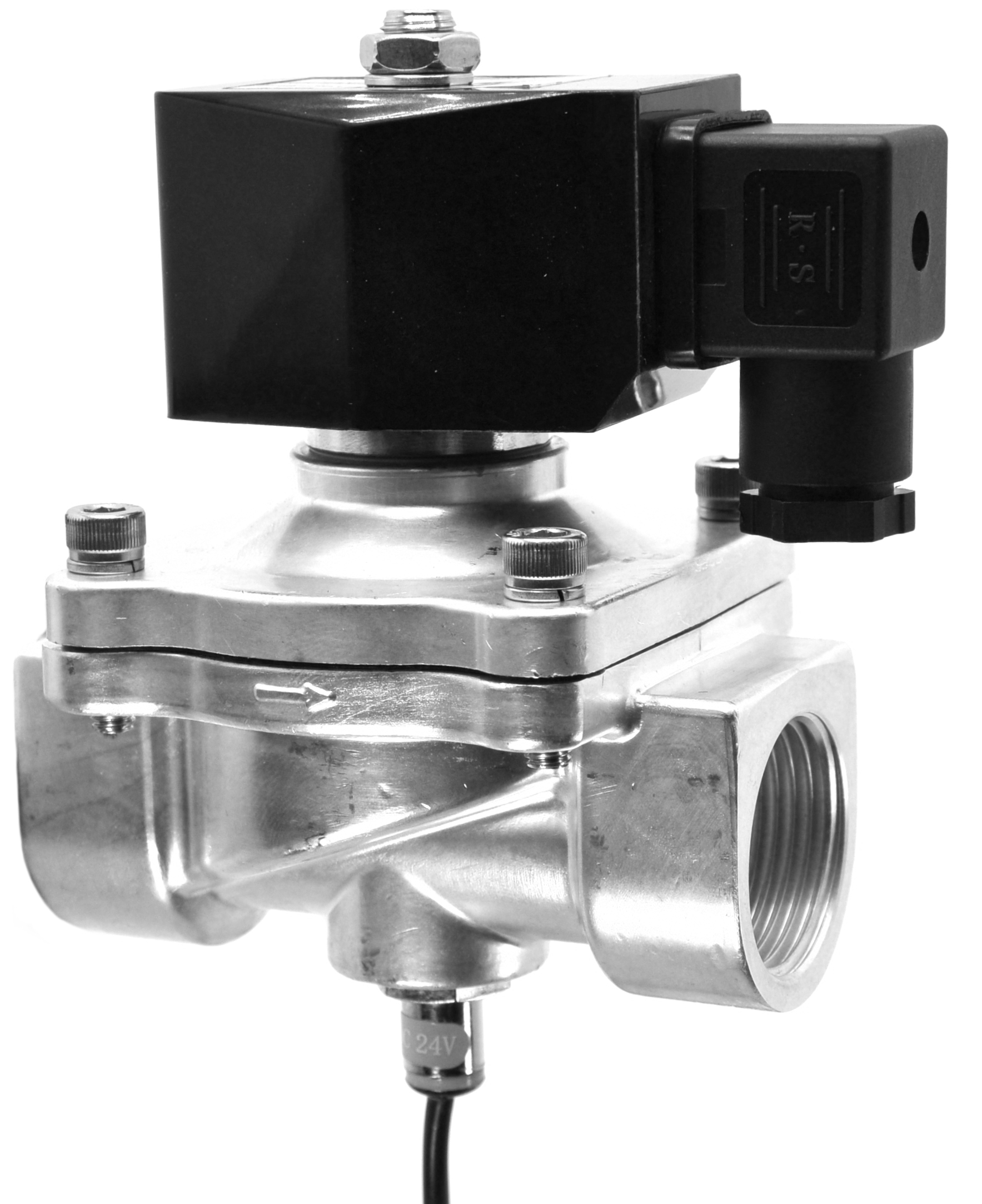

Solenoid Valve Solenoid Valve 3/4"BSP 2/2 NC 304SS VITON Position Feedback Switch 220VAC IP65
£249.41
Out of stock
Tags:
Solenoid Valve 3/4"BSP Two Way Normally Closed. Direct Acting. 304 stainless steel body, stainless steel internal moving parts. Internal orifice: 20mm. Differential pressure range: 0-7bar. VITON seals. Complete with Position Indication Switch. Normally Closed. DC12-24V. Current consumption: less than, or equal to 15mA. Load current: 200 mA. Cable length: 2 metres. RED LED light indicates when the solenoid valve is open. Solenoid coil 220VAC. DIN 43650-A electrical socket connector
Product Details
Compact designed solenoid valve:
- 3/4"BSP Two Way Normally Closed
- Integral position feedback
- Electronic position switch, with LED indicator
- Can be connected to a PLC or BMS system
- Visual indication if the valve is open or closed
- BX41 can be vital for safety systems, especially gas plants
- Available in port sizes from 1/2" to 4"
- Can operate with line pressures up to 6bar (DC), 7bar (AC)
