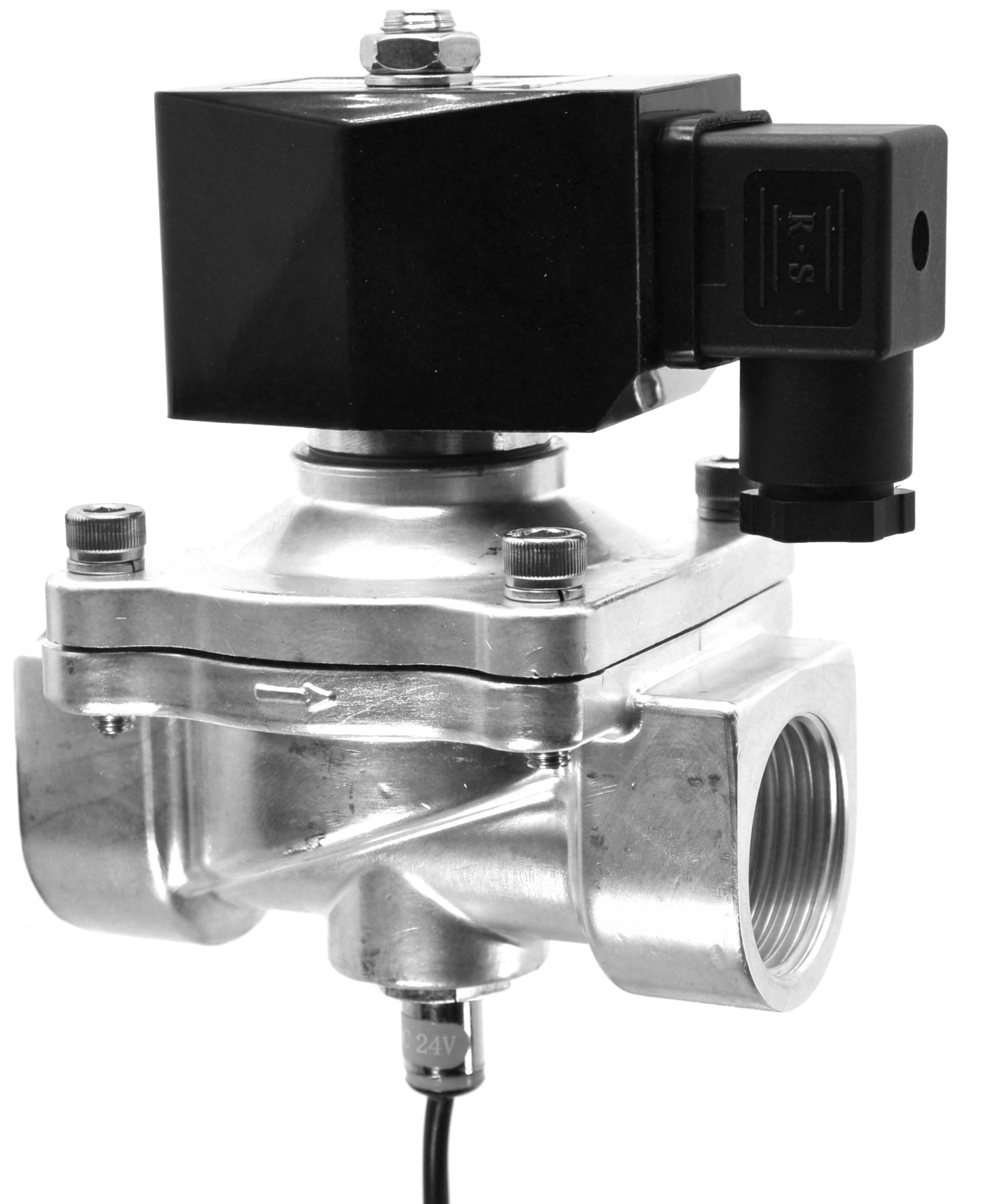

Solenoid Valve 1"BSP 2/2 NC 304SS VIT Position Feedback Switch 230VAC IP65
£273.90
Tags:
Solenoid Valve 1"BSP Two Way Normally Closed. Direct Acting. 304 Stainless Steel body, stainless steel internal moving parts. Internal orifice: 25mm. Differential pressure range: 0-7bar. AC construction. VITON seals. Complete with Position Indication Switch. Normally Closed. DC12-24V. Current consumption: less than, or equal to 15mA. Load current: 200 mA. Cable length: 2 metres. RED LED light indicates when the solenoid valve is open. Solenoid coil: 24VDC. DIN 43650-A electrical socket connector
Choose Quantity
Product Details
Compact designed solenoid valve:
- 1"BSP Two Way Normally Closed
- Integral position feedback
- Electronic position switch, with LED indicator
- Can be connected to a PLC or BMS system
- Visual indication if the valve is open or closed
- BX41 can be vital for safety systems, especially gas plants
- Available in port sizes from 1/2" to 4"
- Can operate with line pressures up to 6bar (DC), 7bar (AC)
