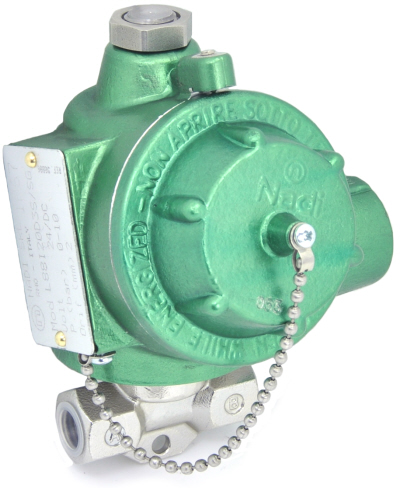

Cryogenic Solenoid Valve 1/4"NPT Stainless Steel Degreased IP67 L88I20D3S/SG/24VDC/M20
£230.25
Tags:
1/4" NPT Solenoid Valve. Two Way Normally Closed. Direct Acting. 316 Stainless Steel Body. Orifice 2.0mm. Degreased for Oxygen Rich Applications. PTFE Seals -196C. Operating pressure range: 0-15 Bar (AC/DC). Kv1.3. B6/E Series Coil: 28/11VA (AC), 11W (DC). Anodised Aluminium Solenoid Coil Housing, weatherproof to IP67 . Female Cable Gland Entry: M20*1.5mm
Choose Quantity
Product Details
Cryogenic Solenoid Valve Degreased for Oxygen Service:
- 1/4" NPT Solenoid Valve
- Two Way Normally Closed, Direct Acting
- 316 Stainless Steel Body
- Orifice 2.0mm
- Degreased for Oxygen Rich Applications
- PTFE Seals -196C
- Operating pressure range: 0-10bar (AC/DC)
- Flow factor: Kv1.3
- B6/E Series Coil: 24VDC 11W. Max Coil Temp - 90 Deg C
- Weatherproof IP67 Anodised Aluminium Solenoid Coil Housing
- Female Cable Gland Entry: M20*1.5mm
- Mounting Bracket (not included)
