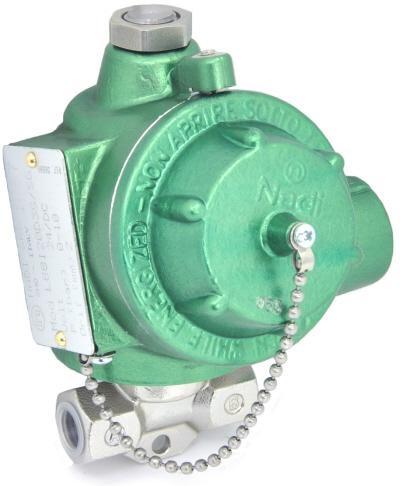

Cryogenic Solenoid Valve 1/4"BSP Stainless Steel Degreased IP67 L88I20C3S/SG/24VDC/M20

1/4" BSP Solenoid Valve. Two Way Normally Closed. Direct Acting. 316 Stainless Steel Body. Orifice 2.0mm. Degreased for Oxygen Rich Applications. PTFE Seals -196C. 0-15 Bar (AC/DC). Kv1.3. B6/E Series Coil: 28/11VA (AC), 11W (DC). IP67 Anodised Aluminium Solenoid Coil Housing. Female Cable Gland Entry: M20*1.5mm. Max Coil Temp - 90 Deg C
Choose Quantity
+ Add to Cart
Product Details
Cryogenic Solenoid Valve Degreased for Oxygen Service:

  • 1/4" BSP Solenoid Valve
  • Two Way Normally Closed, Direct Acting
  • 316 Stainless Steel Body
  • Orifice 2.0mm
  • Degreased for Oxygen Rich Applications
  • PTFE Seals -196C
  • Operating pressure range: 0-10bar (AC/DC)
  • Flow factor: Kv1.3
  • B6/E Series Coil: 24VDC 11W. Max Coil Temp - 90 Deg C
  • Weatherproof IP67 Anodised Aluminium Solenoid Coil Housing
  • Female Cable Gland Entry: M20*1.5mm
  • Mounting Bracket (not included)
