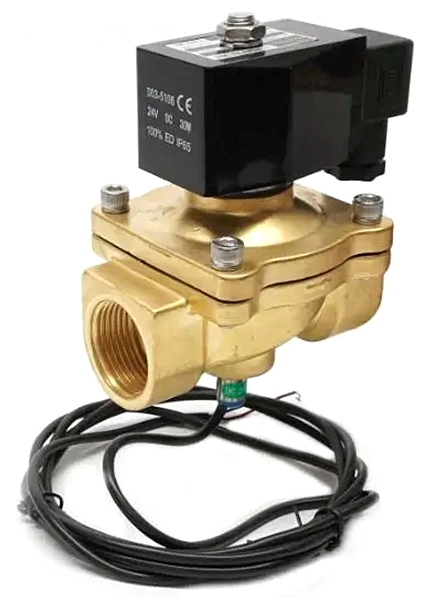

Solenoid Valve 1/2"BSP 2/2 NC BR VITON Position Switch 24VDC IP65
£186.75
Out of stock
Tags:
Solenoid Valve 1/2"BSP Two Way Normally Closed. Direct Acting. Brass body, stainless steel internal moving parts. Internal orifice: 16mm. Differential pressure range: 0-6bar. VITON seals (+70C). Complete with Position Indication Switch. Normally Closed. DC12-24V. Current consumption: less than, or equal to 15mA. Load current: 200 mA. Cable length: 2 metres. RED LED light indicates when the solenoid valve is open. Solenoid coil 24VDC. DIN 43650-A electrical socket connector.
Product Details
Compact designed solenoid valve:
- 1/2"BSP Two Way Normally Closed
- Integral Position feedback with LED indicator
- Can be connected to a PLC or BMS system
- Visual indication if the valve is open or closed
- BX41 can be vital for safety systems, especially gas plants
- Available in port sizes from 1/2" to 4"
- Can operate with line pressures up to 6bar
